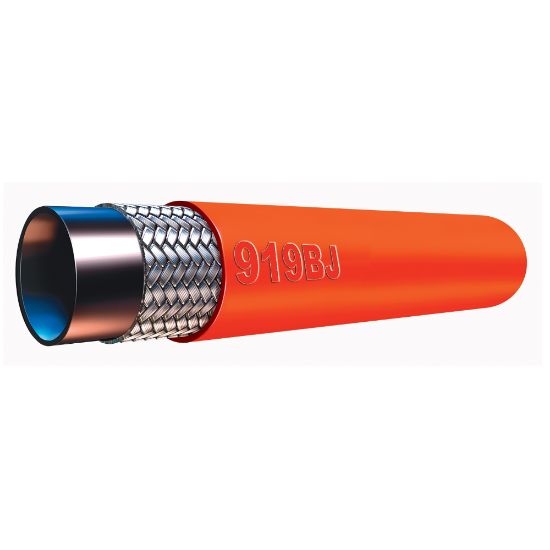

Parker 919BJ-10-ORG - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 919BJ-10-ORG

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Division	Parflex Division
Product Type	PTFE Hose	Product Style	Smoothbore
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Hose Reinforcement Material	Braid of Stainless Steel
Maximum Operating Temperature	450 °F	Design Factor	4:1
Vacuum Pressure Rating	711 mm-Hg	Maximum Operating Pressure	1500 psi
Inside Diameter	1/2 inch	Minimum Bend Radius	165 mm
Size	-10	Media	Lubricants (Oils)
Weight	0.24 lb/ft	Application	Cooling Lines
Outside Diameter	0.780 inch	Cover Material	Extruded Silicone
Compatible Fitting	91N Series	Specifications Met	SAE 100R1, Type 4B
Size	-10	Length	Random
Hose Type	Silicone Jacket, Static Dissipative
