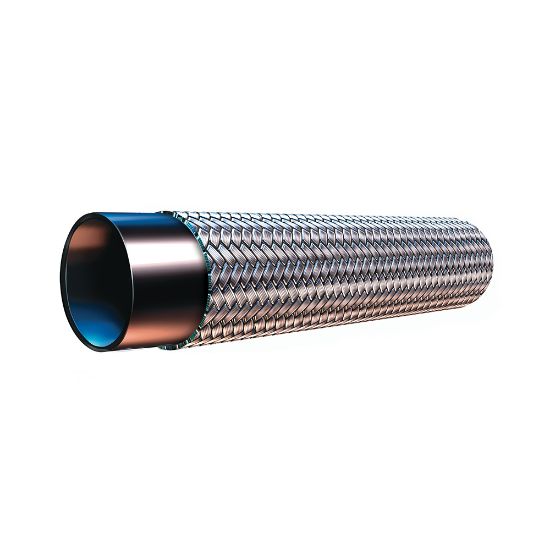

Parker 919B-12 - PTFE Hose - 919 Series

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 919B-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Parflex Division
Product Type	PTFE Hose	Product Style	Smoothbore
Cover Material	n/a	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative
Hose Reinforcement Material	Braid of Stainless Steel	Maximum Operating Temperature	232 °C
Minimum Operating Temperature	-73 °C	Design Factor	4:1
Size	-12	Maximum Operating Pressure	1200 psi
Minimum Bend Radius	7-1/2 inch	Weight	0.28 kg/m
Inside Diameter	16 mm	Application	Compressed Air/Gases
Outside Diameter	20.1 mm	Compatible Fitting	91N Series
Specifications Met	SAE 100R14B	Vacuum Pressure Rating	304.8 mm-Hg
Size	-12	Length	Random
Hose Type	SS Braid, Static Dissipative
