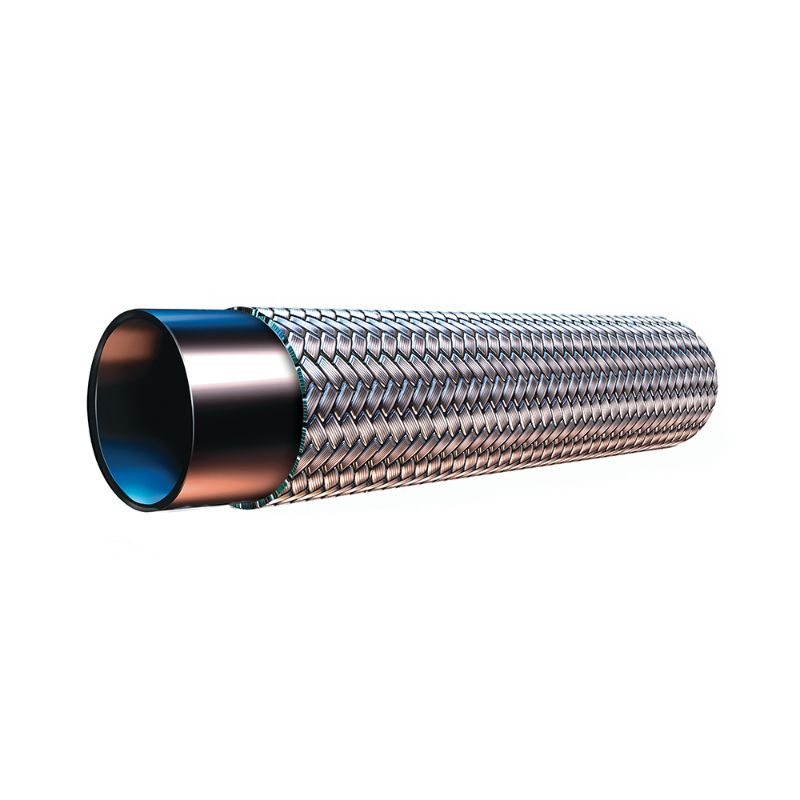

Parker 919-20 - PTFE Hose - 919 Series

Name: Parker 919-20 - PTFE Hose - 919 Series
SKU: 919-20
Price: 52.16 USD
Availability: InStock

PTFE hoses feature superior chemical compatibility, resist moisture, perform in a wide temperature range and offer a low coefficient of friction to assist with flow. Most 919 hoses handle temperatures up to 450°F.

AFP Availability:

110 In Stock

Richmond, VA	44
Richmond, VA	35 (Pickup only)
Johnson City, TN	31 (Pickup only)

Partner Available:

25 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 919-20

$52.16/each

Qty:

Products specifications

Attribute name	Attribute value
Outside Diameter	1.320 inch	Inside Diameter	29 mm
Vacuum Pressure Rating	10 Inch-Hg	Minimum Bend Radius	406 mm
Cover Material	n/a	Specifications Met	SAE 100R1, Type 4A
Hose Reinforcement Material	Braid of Stainless Steel	Weight	0.58 lb/ft
Maximum Operating Pressure	43 bar	Hose Inner Tube Material	Natural
Design Factor	4:1	Product Type	PTFE Hose
Application	Medical Gases	Product Style	Smoothbore
Minimum Operating Temperature	-100 °F	Maximum Operating Temperature	232 °C
Division	Parflex Division	Media	Industrial Fluids
Compatible Fitting	90 Series	Size	-20
Size	-20	Length	Random
Hose Type	SS Braid, Natural
