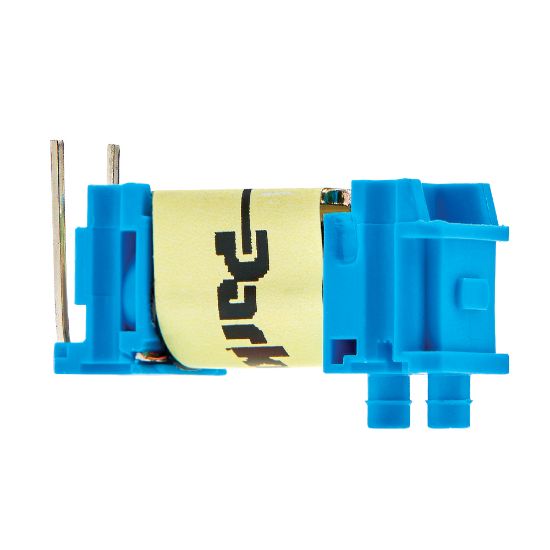

Parker 915-000001-001 - Series LX - Miniature Latching Pneumatic Solenoid Valve

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 915-000001-001

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	6	Seal Material	FKM
For Fluid Type	Gases	Configuration	n/a
Weight	0.16	Function	2-Way
Actuation Type	Solenoid	Division	Precision Fluidics Division
Operation Type	Electronic	Control Method	Current or Voltage
Maximum Operating Temperature	122	Minimum Operating Temperature	32
Standard Lead Time	20	Out of Stock Lead Time	40
Length	0.92	Shipping Weight	0.3
Cycles per Lifetime	up to 25 Million	Width	0.31
Height	0.48	Flow Rate	up to 6
Leak Rate	< 0.0116	Orifice Size	0.045
Body Material	PBT (Polybutylene Terephthalate)	Input Voltage	3
Mounting Type	PC Pins	Response Time	< 20
Connection Size	22 AWG (Retention Pin); 0-80 x 1/2" Binding Head	Connection Type	Retention Pin
Power Consumption	0.52	Max Order Quantity	15
Industry Application	Air and Oxygen Delivery	Electrical Connection	Long Pins
Maximum Operating Pressure	Up to 6	Port Connection	Barb for 1/16", 1.5 mm I.D. Tubing (1/32" Wall Max)
Voltage (VDC)	3	Application Pressure Requirement	6 psid
Electrical Connection Options	Long Pins

Product resources

Literature and Reference Materials

Miniature Solenoid Valves Catalog: PPF-MSV-002/US (PDF)
