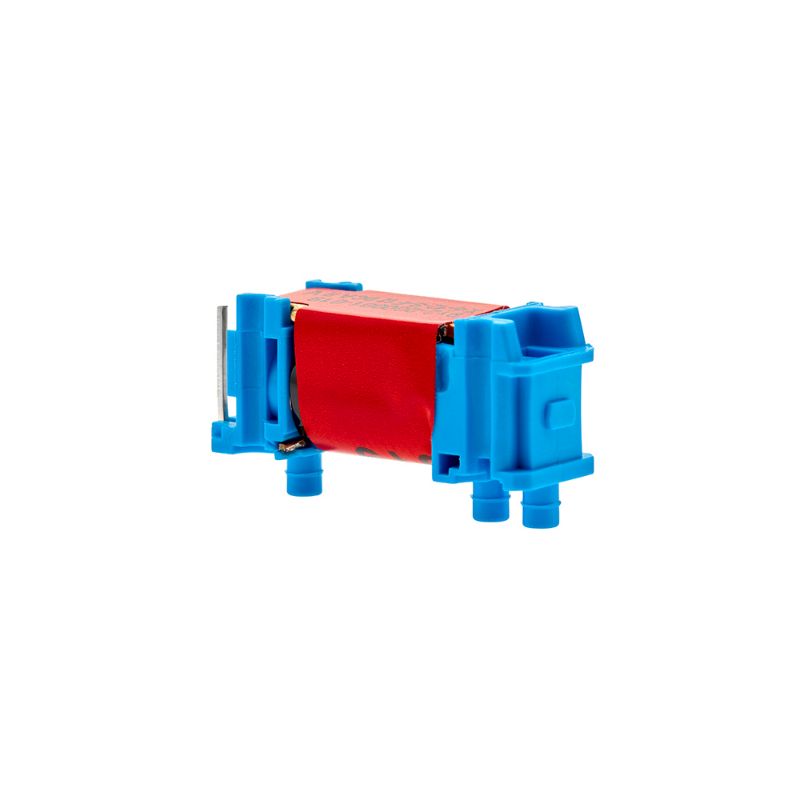

Parker 912-000001-001 - X-Valve - Miniature Pneumatic Solenoid Valve

The Parker X-Valve® is designed to significantly reduce system size while providing pneumatic solutions in one package. Compact, 8mm PBT plastic valve providing a light weight solution for portable applications with limited space and available power.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 912-000001-001

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	FKM	For Fluid Type	Gases
Configuration	n/a	Function	3-Way
Maximum Operating Temperature	50 °C	Actuation Type	Solenoid
Minimum Operating Temperature	32 °F	Division	Precision Fluidics Division
Operation Type	Electronic	Control Method	Current or Voltage
Power Consumption	0.5 W	Max Order Quantity	9
Standard Lead Time	20	Out of Stock Lead Time	40
Length	0.92 inch	Orifice Size	1.14 mm
Shipping Weight	0.3	Cycles per Lifetime	up to 25 Million
Width	8 mm	Height	0.35 inch
Weight	4.5 g	Flow Rate	up to 4 SLPM
Leak Rate	< 0.16 cm3/min	Body Material	PBT (Polybutylene Terephthalate)
Input Voltage	3 VDC	Mounting Type	PC Pins
Response Time	< 20 ms	Connection Size	Phillips Screw
Connection Type	Retention Pin	Maximum Flow Rate	4 SLPM
Industry Application	Portable Equipment	Electrical Connection	Long Pins
Maximum Operating Pressure	Up to 6 psi	Port Connection	Barb
Valve Configuration Type	3 Way Universal	Voltage (VDC)	3
Electrical Connection	Long Pins	Application Pressure Requirement	6 psi (.045" orifice)
Elastomer Material	FKM
