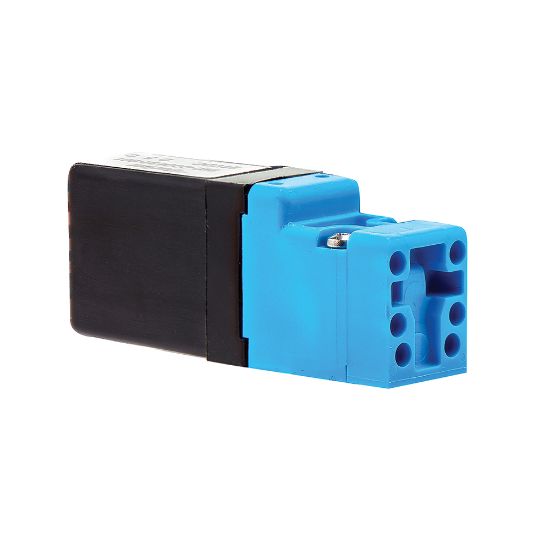

Parker 911-000002-003 - 55 Series 10155

The Parker SRS valve is a compact, 10 mm PBT plastic manifold mount valve, designed for portable medical devices and those applications with limited space and available power.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 911-000002-003

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	FKM	For Fluid Type	Gases
Configuration	n/a	Function	3-Way
Maximum Operating Temperature	50 °C	Actuation Type	Solenoid
Division	Precision Fluidics Division	Flow Rate	up to 7 SLPM
Operation Type	Electronic	Maximum Flow Rate	7 SLPM
Minimum Operating Temperature	0 °C	Leak Rate	< 0.0116 cm3/min
Control Method	Current or Voltage	Power Consumption	0.5 W
Max Order Quantity	9	Standard Lead Time	20
Out of Stock Lead Time	40	Orifice Size	0.51 mm
Connection Type	Mounting Screw	Width	0.39 inch
Height	19.81 mm	Length	38.10 mm
Weight	0.23 oz	Body Material	Glass Reinforced PBT (Thermocomp)
Input Voltage	5 VDC	Mounting Type	Manifold (Gasket Required)
Connection Size	0-80 x 9/16" Pan Head Phillips Screw inch	Shipping Weight	0.3
Cycles per Lifetime	up to 175 Million	Industry Application	Air-over-liquid
Electrical Connection	Front	Maximum Operating Pressure	2.41 bar
Response Time	< 30 ms	Vacuum Pressure Rating	686 mm-Hg
Electrical Connection	18" Wire Leads, Front	Voltage (VDC)	5
Valve Configuration Type	3-Way Normally Closed	Application Pressure Requirement	0-35 psi / .020" Orifice
