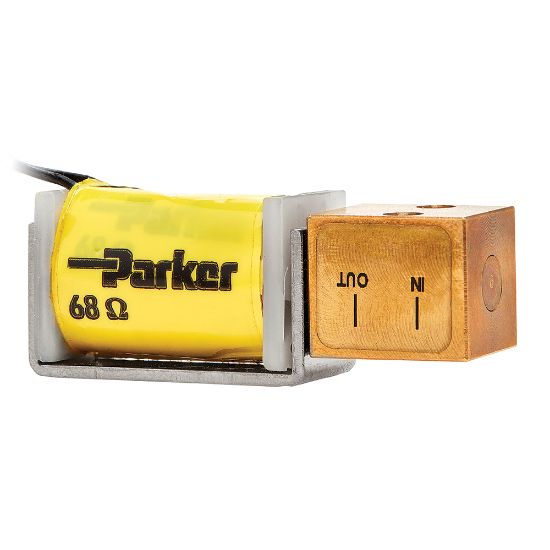

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 910-000200-004 - 55 Series 10555

Low Flow, 2-way normally closed (NC) proportional valve with integrated thermal compensation to maintain accurate and repeatable flow over a wide range of media.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 910-000200-004

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	FKM	For Fluid Type	Gases
Maximum Operating Pressure	150 psi	Configuration	n/a
Maximum Operating Temperature	55 °C	Function	2-Way
Actuation Type	Solenoid	Division	Precision Fluidics Division
Mounting Type	Manifold	Operation Type	Electronic
Control Method	Current or Voltage	Power Consumption	1.0 W
Max Order Quantity	9	Standard Lead Time	20
Out of Stock Lead Time	40	Minimum Operating Temperature	41 °F
Shipping Weight	0.35	Leak Rate	< 0.016 cm3/min of Helium @ 150 Psi
Industry Application	Pressure & Flow Control	Orifice Size	0.116 inch
Length	1.79 inch	Weight	63 g
Body Material	Brass 360 H02	Width	15.9 mm
Height	17 mm	Connection Size	4-40 x 5/8" Pan Head Phillips Screw
Cycles per Lifetime	100 Million	Electrical Connection	18" Wire Leads
Vacuum to Pressure Range	686.0 mm-Hg to Pressure Rating	Flow Rate	up to 500 cm3/min
Connection Type	Mounting Screw	Maximum Flow Rate	500 cm3/min
Thermal Compensation	Non-Thermally Compensated	Input Voltage	18 VDC
Maximum Operating Voltage	18 VDC
