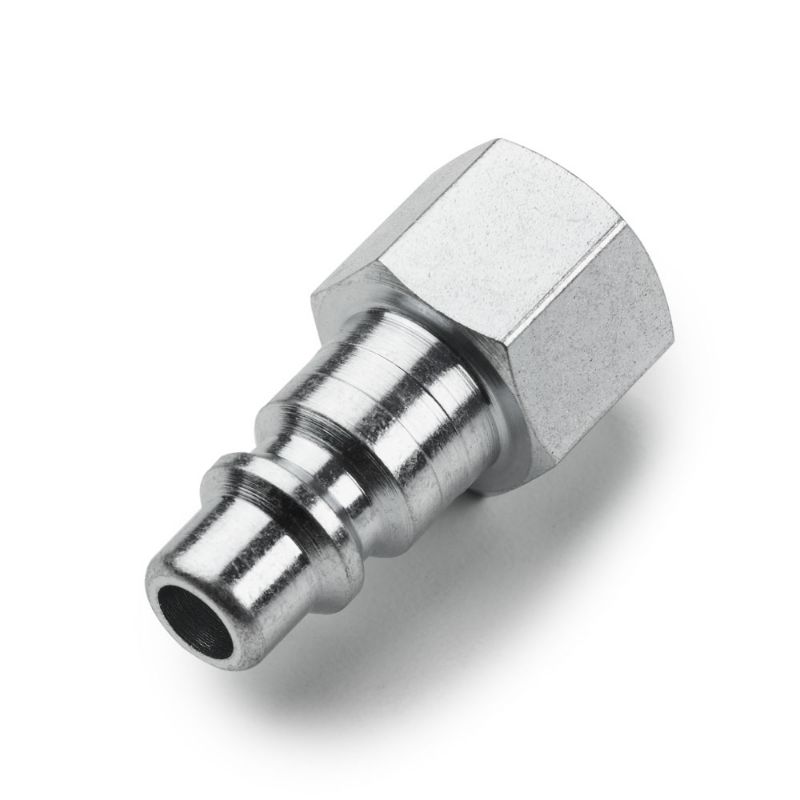

Parker 9083 23 14 - Transair® Safety Couplers and Plugs

Transair® safety air couplers are designed for frequent connection and disconnection. The two-turn release system vents the downstream pressure, preventing serious injury.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 9083 23 14

$2.58

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Quantity per Box	10.0	Division	Fluid System Connectors Division
Assembly Time	0.15 Hours	Minimum Operating Temperature	-20 °C
Division	Fluid System Connectors Division	Materials of Construction	Brass
Weight	0.02 kg	Application	Inert Gases
Maximum Operating Pressure	232 psi	Maximum Operating Temperature	60 °C
Flow Rate	47 SCFM	Body Material	Brass
Body Size	1/4 inch	Coupling Half	Female NPT Plug
Connection Size	1/4 INCH\|6,35 MM	Industry Standards	ISO 4414, series B
