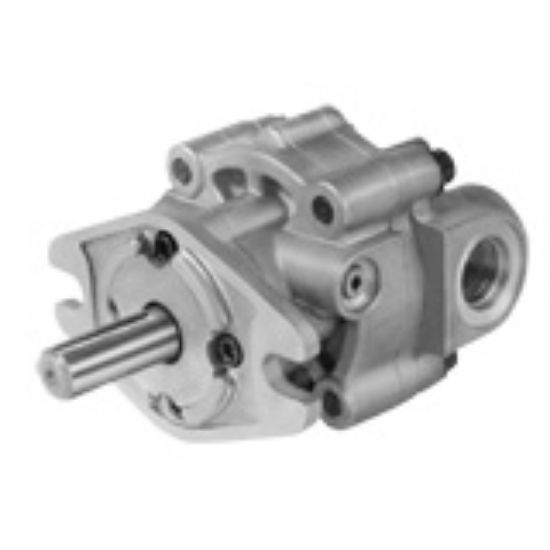

Parker 900298 - Aluminum Motors – MGG Series

Parker’s Aluminum Motor MGG Series fixed displacement High Speed Low Torque Gerotor motor offers high performance and high power density dues to its aluminum construction.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 900298

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Pump & Motor Division	Maximum Operating Pressure	2000
Weight	3.5	Product Type	Gerotor Motor aluminum with roller bearing
Size	30	Flow Rate	3.03
Shaft Type	Keyed Ø9/16	Displacement	0.7 inch3/rev (Motor)
Mounting Type	SAE 2-Bolt "A"	Torque Rating	111
Number of Ports	SAE 10 Straight Thread - Side	Shaft Seal Material	NBR
Direction of Rotation	Bi-Directional	Maximum Oil Temperature	180
Maximum Operating Speed	5000	Filter Efficiency Rating	10 micron [recommended minimum]
Maximum Continuous Pressure	1500	Maximum Kinematic Viscosity	150
Size	0030	Porting	SAE 10 Straight Thread - Side
Rotation	Bi-Direction	Shaft Type	9/16 Dia. Keyed
Weight (lbs)	3.5	Flow Rate (gpm)	3.03
Mounting Style	SAE 2-BOLT "A"	Shaft Seal Material	NBR
Motor Displacement (cu in/rev)	0.700
