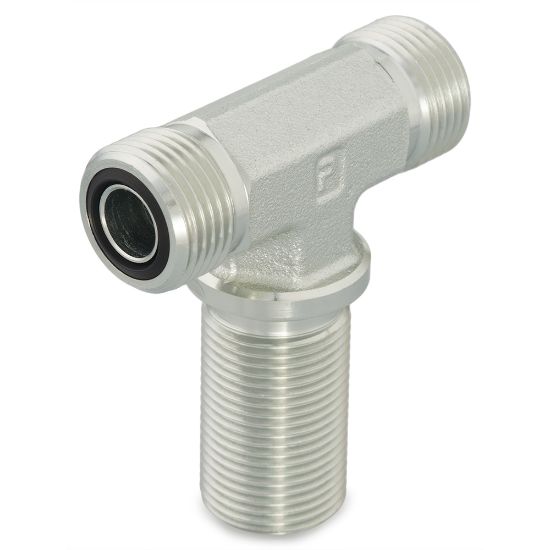

Parker 8WJMLOWLNMLS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8WJMLOWLNMLS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Division	Tube Fittings Division
Connection 1 Tube Outside Diameter	12 mm	Connection 3 Thread Size	na
Connection 3 Type	Male O-Ring Face Seal Bulkhead with Locknut	Connection 2 Type	Male O-Ring Face Seal
Connection 3 Tube Outside Diameter	1/2 inch	Connection 4 Tube Outside Diameter	na
Connection Type	O-ring Face Seal	Connection 2 Tube Outside Diameter	1/2 inch
Maximum Dynamic Pressure	9200 psi	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Connection 1 Type	Male O-Ring Face Seal
Specifications Met	SAE J1453	Shape	Tee
Connection 2 Thread Size	na
