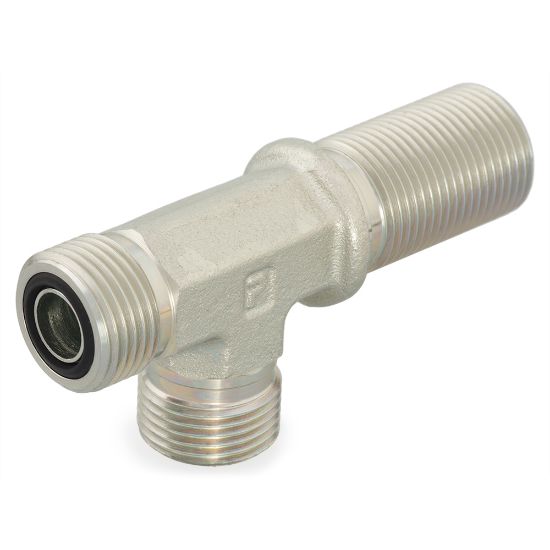

Parker 8WJJMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8WJJMLOS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 4 Tube Outside Diameter	na	Connection 3 Type	Male O-Ring Face Seal
Maximum Dynamic Pressure	9200 psi	O-Ring Material	90 Durometer Nitrile
Connection 3 Tube Outside Diameter	12 mm	Specifications Met	SAE J1453
Connection 2 Thread Size	na	Shape	Tee
Connection Type	Bulkhead Run Tee with Metric Hex	Connection 1 Type	Male O-Ring Face Seal
Connection 1 Tube Outside Diameter	1/2 inch	Body Material	Steel
Connection 2 Type	Male O-Ring Face Seal Bulkhead	Connection 3 Thread Size	na
Division	Tube Fittings Division	Connection 4 Type	na
Dimensional Weight	0.07742805755395683 lb	Connection 2 Tube Outside Diameter	12 mm

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
