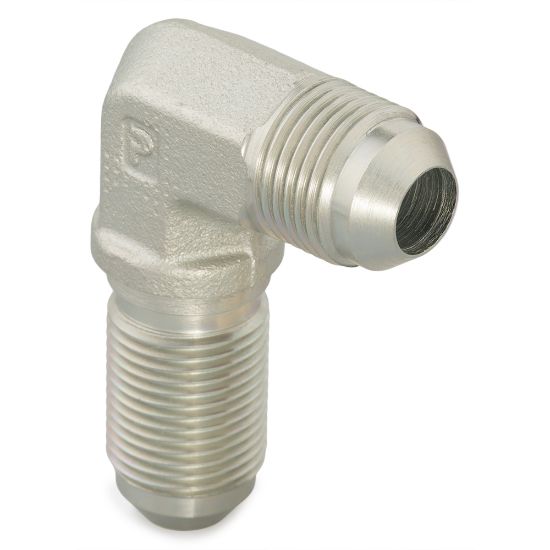

Parker 8WEMTXWLNMS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8WEMTXWLNMS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Connection 3 Size	na
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection 1 Tube Outside Diameter	1/2 inch
Connection 1 Size	Male 37° Flare	Connection 4 Tube Outside Diameter	na
Connection Type	37° Flare	Connection 2 Tube Outside Diameter	1/2 inch
Connection 2 Size	Male 37° Flare Bulkhead	Specifications Met	SAE J514
O-Ring Material	na	Connection 2 Thread Size	na
Shape	90° Elbow	Connection 4 Size	na
Maximum Dynamic Pressure	6000 psi

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
