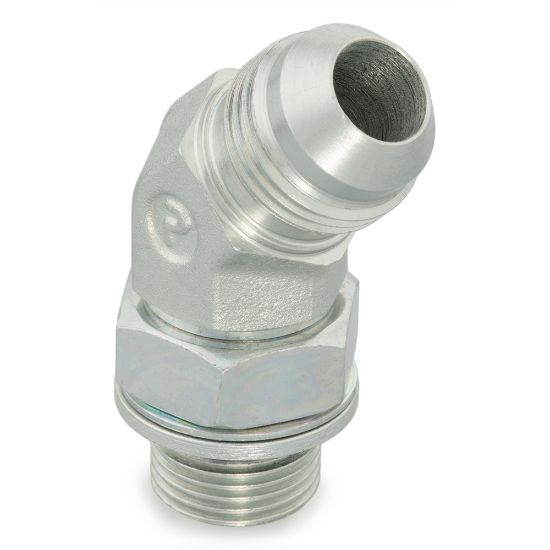

Parker 8V4OMXS FKM - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8V4OMXS FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 4 Size	na	Connection 2 Thread Size	na
Body Material	Steel	Connection 1 Size	Male 37° Flare
O-Ring Material	90 Durometer Fluorocarbon	Connection 3 Size	na
Connection 2 Size	Male BSPP O-Ring Retaining Ring	Connection 3 Tube Outside Diameter	na
Connection 3 Thread Size	na	Division	Tube Fittings Division
Maximum Dynamic Pressure	3600 psi	Shape	45° Elbow
Connection 1 Tube Outside Diameter	1/2 inch	Connection 2 Tube Outside Diameter	na
Connection Type	37° Flare	Connection 4 Tube Outside Diameter	na
Specifications Met	SAE J514
