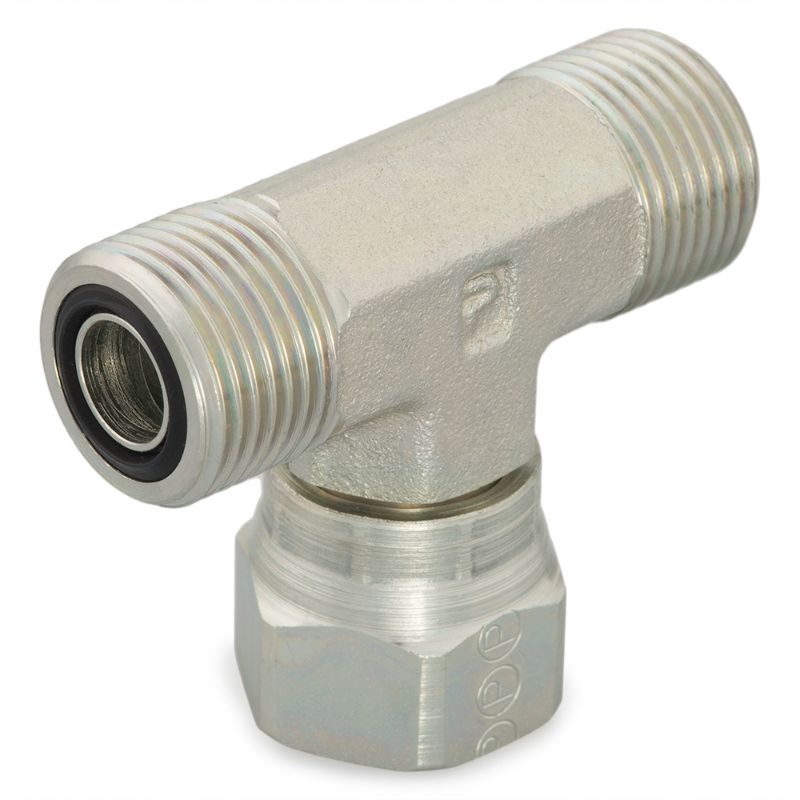

Parker 8S6MLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8S6MLOS

$43.22/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Thread Size	na	Shape	Tee
Connection 2 Tube Outside Diameter	12 mm	Connection 1 Tube Outside Diameter	12 mm
Connection 4 Type	na	O-Ring Material	90 Durometer Nitrile
Connection 4 Tube Outside Diameter	na	Connection 2 Type	Male O-Ring Face Seal
Connection 3 Tube Outside Diameter	12 mm	Connection 3 Thread Size	na
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
Specifications Met	SAE J1453	Maximum Dynamic Pressure	9200 psi
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Type	Female O-Ring Face Seal Swivel
