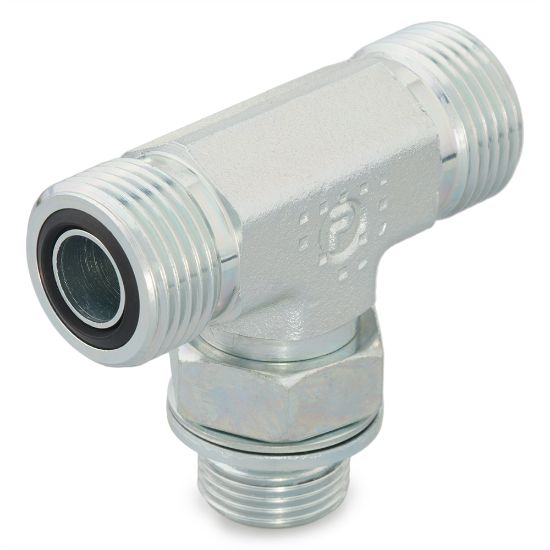

Parker 8S4OMLOSS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8S4OMLOSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Body Material	Stainless Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Connection Type	O-ring Face Seal	Connection 1 Type	Male O-Ring Face Seal
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male O-Ring Face Seal	Shape	Tee
Maximum Dynamic Pressure	2900 psi	Connection 2 Tube Outside Diameter	12 mm
Connection 3 Type	Male BSPP Retaining Ring	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Thread Size	3/8-19 inch

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
