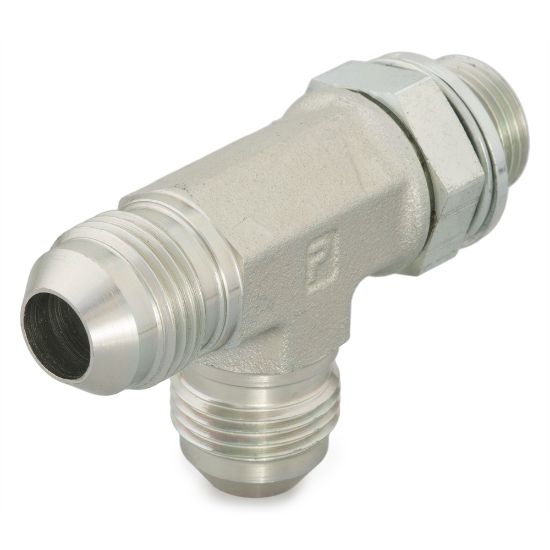

Picture of Parker 8R4OMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 8R4OMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 8R4OMXSS
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionTube Fittings DivisionConnection 4 Sizena
Connection Type37° FlareBody MaterialStainless Steel
O-Ring Material90 Durometer NitrileSpecifications MetSAE J514
Connection 3 Thread SizenaConnection 2 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection 1 SizeMale 37° Flare
ShapeTeeConnection 3 SizeMale 37° Flare
Maximum Dynamic Pressure2900 psiConnection 2 SizeMale BSPP O-Ring Retaining Ring
Connection 2 Thread Size3/8-19 inchConnection 1 Tube Outside Diameter1/2 inch
Connection 3 Tube Outside Diameter12 mm
