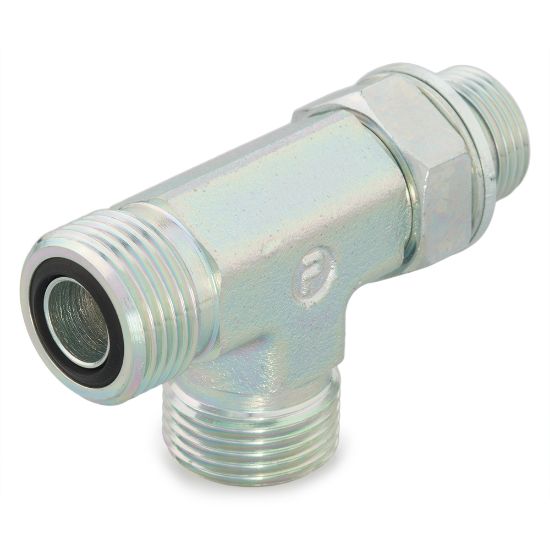

Parker 8R4OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8R4OMLOS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	4000 psi
Body Material	Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 4 Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 2 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Shape	Tee	Connection 3 Type	Male O-Ring Face Seal
Connection 2 Type	Male BSPP O-Ring Retaining Ring	Connection 3 Tube Outside Diameter	12 mm
Dimensional Weight	0.17985611510791366 lb	Connection 1 Tube Outside Diameter	12 mm
