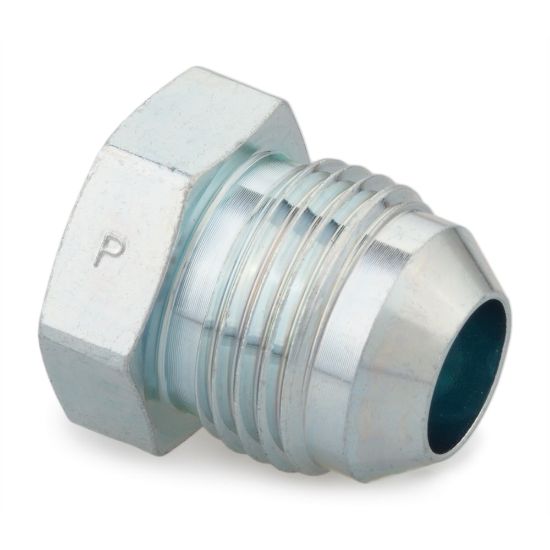

Parker 8PNMTXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8PNMTXS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
O-Ring Material	na	Specifications Met	SAE J514
Connection 2 Size	na	Connection 4 Size	na
Connection 2 Thread Size	na	Connection 4 Tube Outside Diameter	na
Division	Tube Fittings Division	Maximum Dynamic Pressure	4500 psi
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
Shape	Plug with Metric Hex	Connection Type	na
Connection 2 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	1/2 inch
Connection 3 Size	na	Body Material	Steel
Connection 1 Size	Male 37° Flare

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
