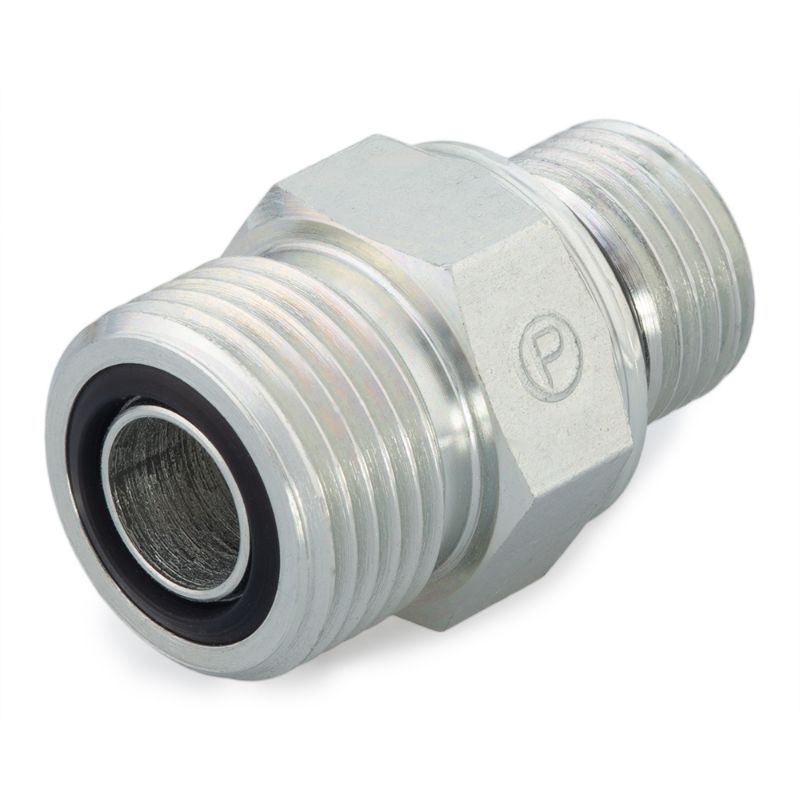

Parker 8M27F87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 8M27F87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 8M27F87OMLOS
Price: 20.19 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

4 In Stock

Richmond, VA

4 (Pickup only)

Partner Available:

4 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 8M27F87OMLOS

$20.19/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 3 Type	na
Dimensional Weight	0.062320143884892085 lb	Specifications Met	SAE J1453, ISO 8434-3
Connection 1 Type	Male O-Ring Face Seal	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	Connection 2 Type	Male ISO 6149
Connection 2 Tube Outside Diameter	na	Shape	Straight
Connection 2 Thread Size	M27X2 mm	O-Ring Material	90 Durometer Nitrile
Connection Type	O-ring Face Seal	Connection 4 Type	na
Division	Tube Fittings Division	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	12 mm

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
