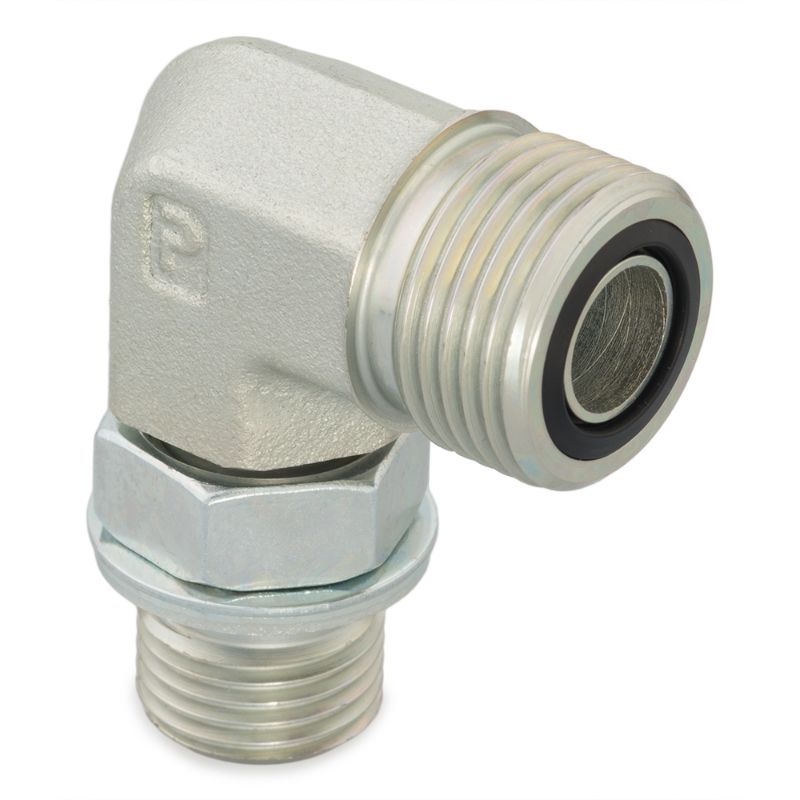

Parker 8M22C8OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	4 In Stock

Brand Parker

Part No. 8M22C8OMLOS

$28.26

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Tube Outside Diameter	na
O-Ring Material	90 Durometer Nitrile	Maximum Dynamic Pressure	3600 psi
Connection 4 Type	na	Connection 1 Type	Male O-Ring Face Seal
Connection 3 Type	na	Specifications Met	SAE J1453
Shape	90° Elbow	Connection 2 Type	Male Metric O-Ring Retaining Ring
Body Material	Steel	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	12 mm	Connection 3 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	M22x1.5 mm	Connection Type	Tube to Metric-ORR
Dimensional Weight	0.19784172661870503 lb
