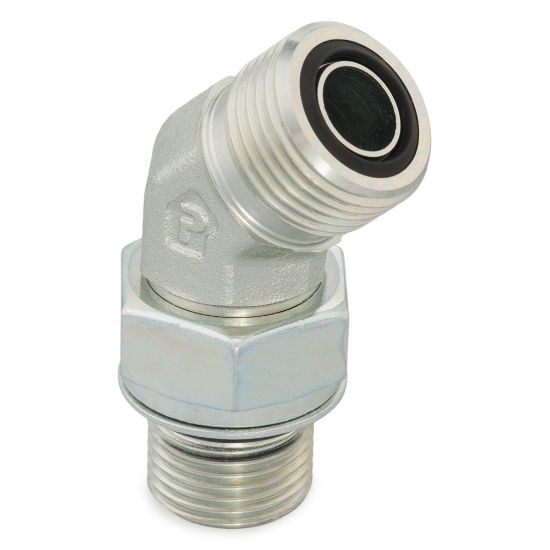

Parker 8M18V87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M18V87OMLOS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	O-ring Face Seal	Connection 4 Tube Outside Diameter	na
Specifications Met	SAE J1453, ISO 8434-3	Connection 2 Type	Male ISO 6149
Connection 4 Type	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal	Dimensional Weight	0.04112185251798561 lb
Connection 3 Type	na	Maximum Dynamic Pressure	6000 psi
Body Material	Steel	Connection 3 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection 3 Thread Size	na
Shape	45° Elbow	Connection 2 Thread Size	M18x1.5 mm
Connection 1 Tube Outside Diameter	1/2 inch	Connection 2 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
