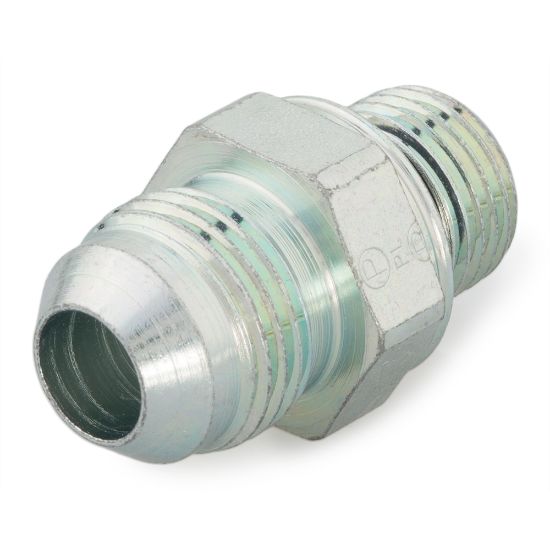

Parker 8M18F87OMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M18F87OMXSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	Tube to ISO 6149	Maximum Dynamic Pressure	5000 psi
Connection 2 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Specifications Met	SAE J514 and ISO 8434-2	O-Ring Material	90 Durometer Nitrile
Connection 3 Tube Outside Diameter	na	Connection 4 Size	na
Connection 2 Thread Size	na	Shape	Straight
Connection 3 Size	na	Body Material	Stainless Steel
Connection 1 Size	Male 37° Flare	Connection 2 Size	Male ISO 6149
Division	Tube Fittings Division	Connection 1 Tube Outside Diameter	12 mm
Connection 3 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
