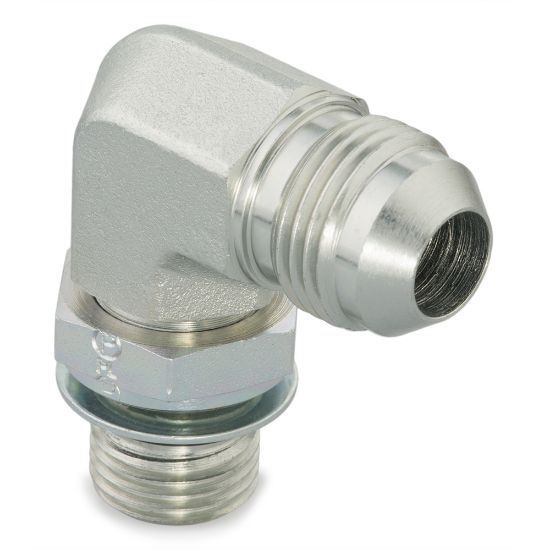

Parker 8M18C87OMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M18C87OMXSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 2 Tube Outside Diameter	na	Body Material	Stainless Steel
Connection 3 Size	na	Connection 1 Size	Male 37° Flare
O-Ring Material	90 Durometer Nitrile	Maximum Dynamic Pressure	5000 psi
Connection 2 Thread Size	M18x1.5 mm	Connection 4 Size	na
Connection 4 Tube Outside Diameter	na	Specifications Met	SAE J514 and ISO 8434-2
Connection Type	37° Flare	Shape	90° Elbow
Connection 1 Tube Outside Diameter	12 mm	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 2 Size	Male ISO 6149

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
