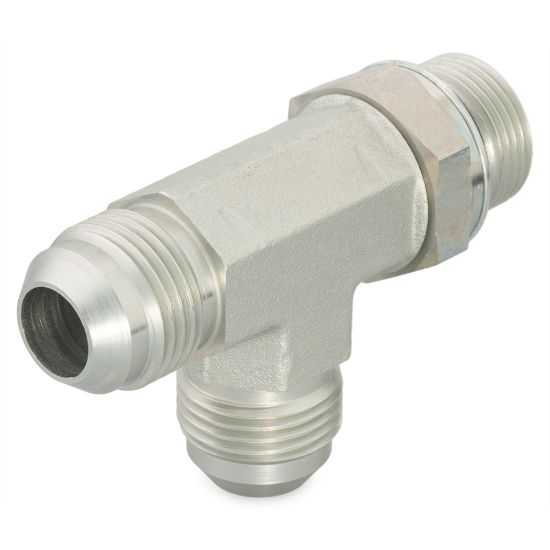

Parker 8M16R87OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M16R87OMXS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
O-Ring Material	na	Maximum Dynamic Pressure	5000 psi
Specifications Met	SAE J514	Connection 3 Size	Male 37° Flare
Connection 2 Tube Outside Diameter	na	Connection 4 Size	na
Shape	Tee	Connection 2 Thread Size	na
Connection 3 Tube Outside Diameter	1/2 inch	Connection 4 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection Type	Run Tee
Connection 1 Size	Male 37° Flare	Connection 2 Size	Male ISO 6149
Connection 1 Tube Outside Diameter	12 mm	Body Material	Steel
Connection 3 Thread Size	na
