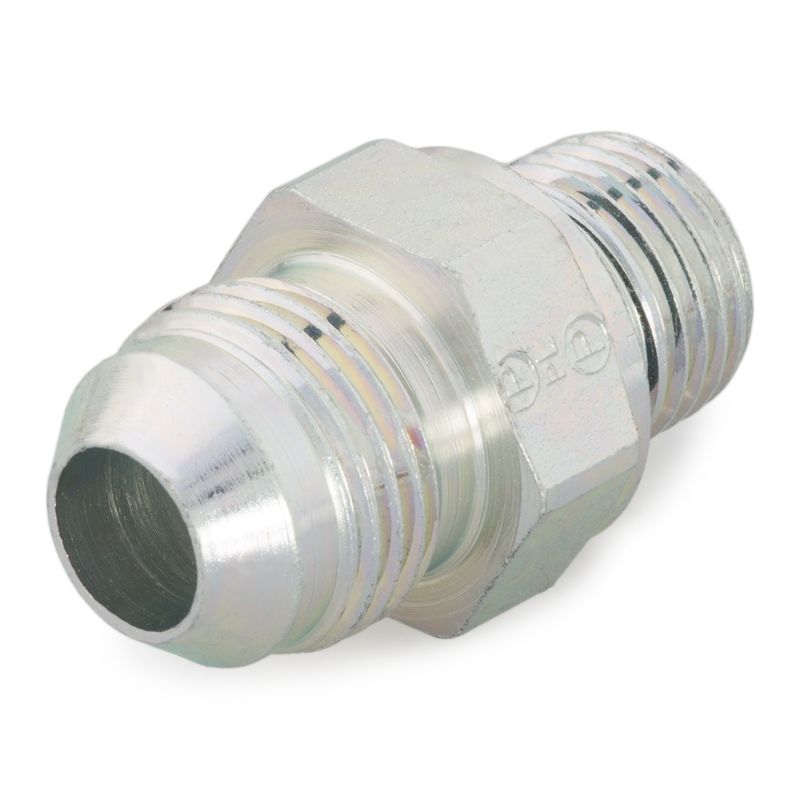

Parker 8M16F82EDMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 8M16F82EDMXS

$16.90

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Shape	Straight	Connection 2 Size	Male Metric EOlastic Seal
Body Material	Steel	Connection 3 Thread Size	na
Connection 3 Size	na	Division	Tube Fittings Division
Connection 3 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	M16X1.5 mm	Connection 1 Tube Outside Diameter	1/2 inch
Connection 4 Tube Outside Diameter	na	Connection Type	37° Flare
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Connection 4 Size	na	Maximum Dynamic Pressure	6000 psi

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
