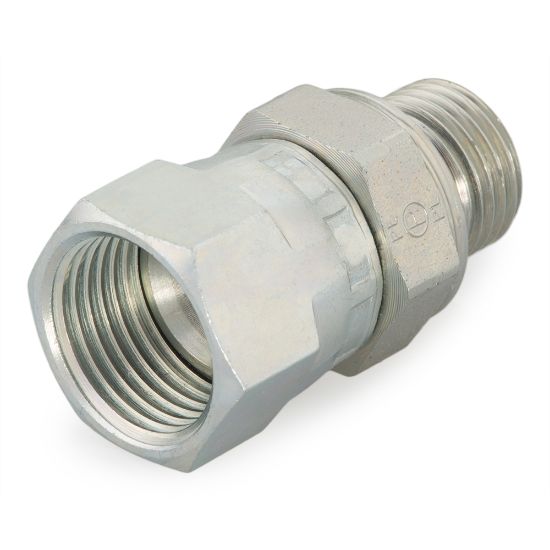

Parker 8M16F687OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M16F687OMXS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 2 Thread Size	na	Connection 4 Size	na
Connection 4 Tube Outside Diameter	na	Specifications Met	SAE J514 and ISO 8434-2
Connection 3 Thread Size	na	Connection 2 Size	Male ISO 6149
Division	Tube Fittings Division	Connection 1 Tube Outside Diameter	12 mm
Connection 1 Size	Female 37° Flare Swivel	Connection 3 Tube Outside Diameter	na
Connection 2 Tube Outside Diameter	na	Connection 3 Size	na
Body Material	Steel	Shape	Straight
Connection Type	37° Flare	O-Ring Material	90 Durometer Nitrile
Maximum Dynamic Pressure	5000 psi

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
