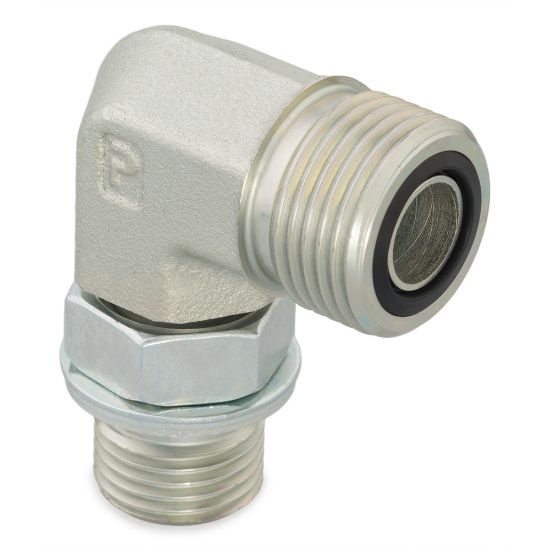

Parker 8M16C8OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M16C8OMLOS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 2 Tube Outside Diameter	na	Connection 2 Thread Size	M16X1.5 mm
Connection 2 Type	Male Metric O-Ring Retaining Ring	Connection 1 Tube Outside Diameter	1/2 inch
Connection 4 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Maximum Dynamic Pressure	3600 psi
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Type	na
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Shape	90° Elbow	Body Material	Steel
Connection 3 Thread Size	na	Division	Tube Fittings Division
Connection 3 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
