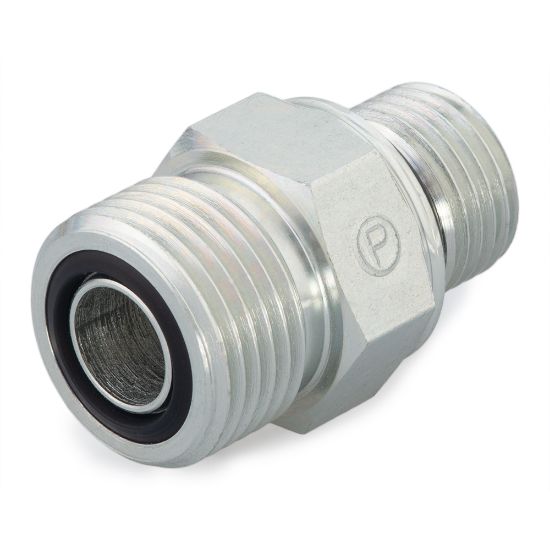

Parker 8M14F87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. 8M14F87OMLOS

$8.08

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	12 mm
Division	Tube Fittings Division	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	na
Shape	Straight	Body Material	Steel
Connection 2 Thread Size	M14X1.5 mm	Connection 2 Type	Male ISO 6149
Maximum Dynamic Pressure	9200 psi	Connection 4 Tube Outside Diameter	na
O-Ring Material	90 Durometer Nitrile	Dimensional Weight	0.03084138938848921 lb
Connection Type	Tube to ISO 6149	Connection 4 Type	na
Connection 3 Type	na	Connection 1 Type	Male O-Ring Face Seal
Specifications Met	SAE J1453, ISO 8434-3
