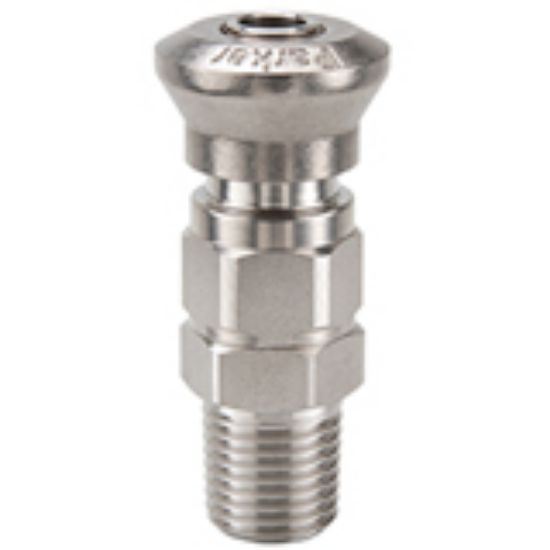

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 8M-Q8CY-SSP - Stainless Steel, Instrumentation Quick Couplings - CPI Series

Parker's stainless steel instrumentation quick couplers and nipples are ideal for vacuum or pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8M-Q8CY-SSP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	750 psi	Hose Inside Diameter	na
Seal Material	Fluorocarbon	Division	Quick Coupling Division
Maximum Operating Temperature	400 °F	Body Material	316 Stainless Steel
Valve Type	Poppet	Minimum Operating Temperature	-15 °F
Application	Instrumentation	Product Type	Push-to-Connect
Vacuum Pressure Rating	0.05 mm-Hg	Maximum Operating Pressure	750
Tube Size (inch)	na	Body Size (inch)	1/2
Connection Type	Male NPT	Coupling Half	Female Coupler
Connection Thread Size (inch)	1/2 - 14

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
