*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

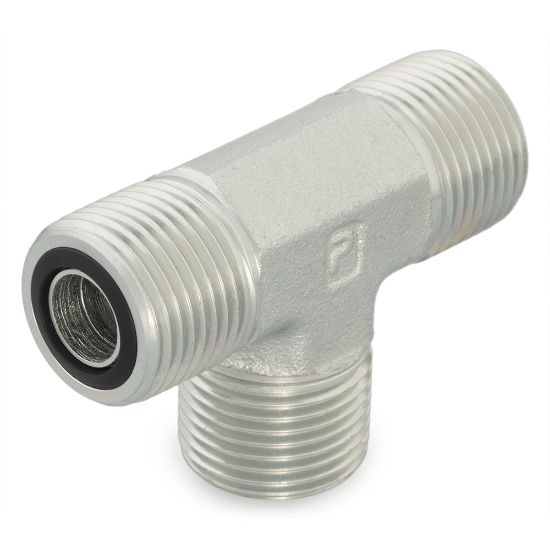

Parker 8JMLOSS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8JMLOSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 3 Thread Size	na	Division	Tube Fittings Division
Connection 1 Type	Male O-Ring Face Seal	Connection 2 Tube Outside Diameter	12 mm
Maximum Dynamic Pressure	9000 psi	Connection 2 Type	Male O-Ring Face Seal
Connection 1 Tube Outside Diameter	1/2 inch	Connection 3 Tube Outside Diameter	12
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Connection 4 Type	na	Connection 2 Thread Size	na
Shape	Tee	Connection Type	Union Tee with Metric Hex
Specifications Met	SAE J1453	Connection 3 Type	Male O-Ring Face Seal
Connection 4 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
