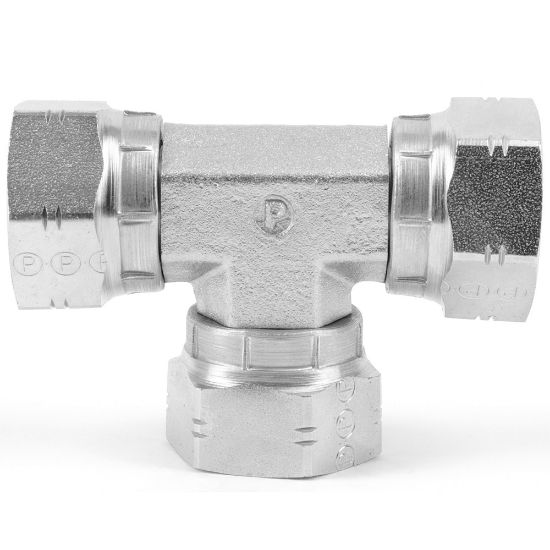

Parker 8J6MK4S - Pipe Fittings and Port Adapters

Parker's Pipe Fittings and Port Adapters product line offers a wide range of thread types and high static pressure ratings.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8J6MK4S

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 4 Size	na	Division	Tube Fittings Division
Maximum Dynamic Pressure	2900 psi	Fitting Type	Swivel Adapter
Connection 4 Thread Size	na	Body Material	Steel
Connection 1 Thread Size (mm)	na	Connection Style	BSPP TO BSPP Swivel
Connection 3 Style	Female BSPP Swivel	Shape	Tee
Connection 2 Thread Size (inch)	1/2-14	Body Material	Steel
Connection 1 Thread Size (inch)	1/2-14	Length (inch)	na
Connection 1 Style	Female BSPP Swivel	Connection 3 Thread Size (inch)	1/2-14
O-Ring Material	na	Connection 2 Style	Female BSPP Swivel
Connection 2 Thread Size (mm)	na
