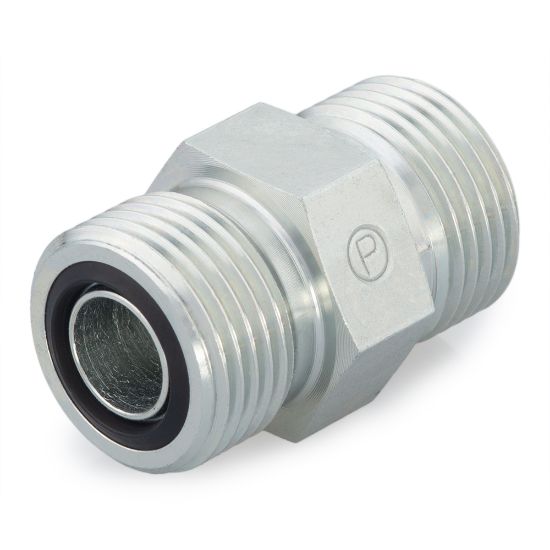

Parker 8HMLOSS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8HMLOSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Shape	Straight
Body Material	Stainless Steel	O-Ring Material	90 Durometer Nitrile
Specifications Met	SAE J1453	Connection 1 Type	Male O-Ring Face Seal
Connection 3 Type	na	Connection 4 Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 2 Type	Male O-Ring Face Seal	Connection 2 Tube Outside Diameter	12 mm
Connection Type	Tube to Tube with Metric Hex	Connection 1 Tube Outside Diameter	1/2 inch
Maximum Dynamic Pressure	9000 psi
