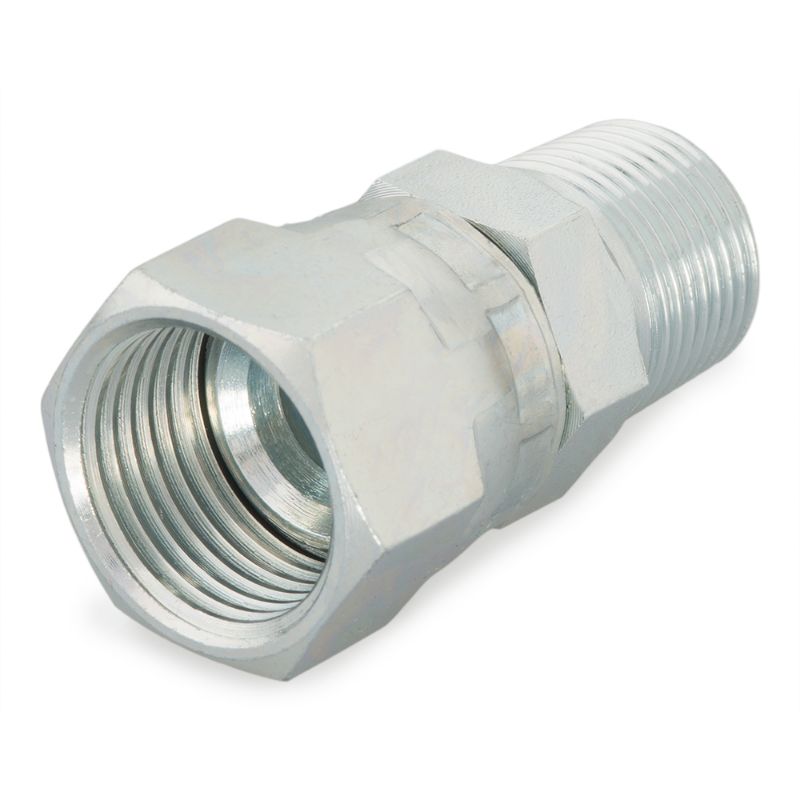

Parker 8F63MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	6 In Stock

Brand Parker

Part No. 8F63MXS

$37.29/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	na
Shape	Straight	Connection 2 Thread Size	na
Specifications Met	SAE J514	Connection 4 Size	na
Connection 3 Size	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Female 37° Flare	Connection 1 Tube Outside Diameter	12 mm
Body Material	Steel	Connection 2 Size	Male BSPT
O-Ring Material	na	Connection Type	37° Flare
Division	Tube Fittings Division	Maximum Dynamic Pressure	4500 psi
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
