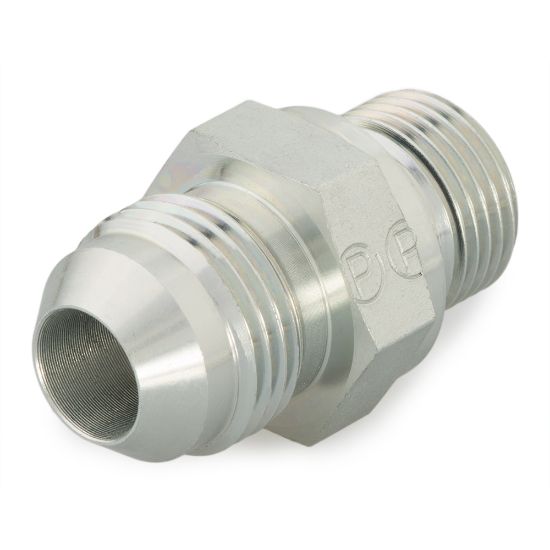

Parker 8F42EDMXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8F42EDMXSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection 1 Size	Male 37° Flare	Shape	Straight
Body Material	Stainless Steel	Connection 3 Size	na
Connection 3 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 3 Thread Size	na	Specifications Met	SAE J514
Connection 1 Tube Outside Diameter	1/2 inch	Connection 2 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection Type	37° Flare
Maximum Dynamic Pressure	5000 psi	O-Ring Material	90 Durometer Nitrile
Connection 4 Size	na	Connection 2 Thread Size	na
Connection 2 Size	Male BSPP EOlastic Seal
