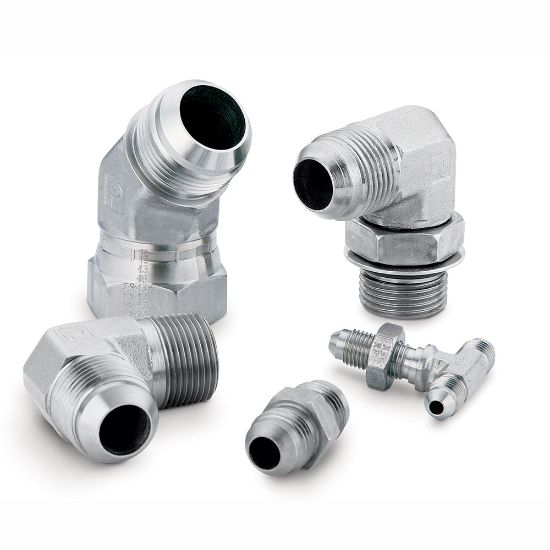

Parker 8C6MXSS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8C6MXSS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Dynamic Pressure	5000 psi	Specifications Met	SAE J514
Connection 1 Tube Outside Diameter	1/2 inch	Shape	90° Elbow
Connection 4 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	1/2 inch
O-Ring Material	na	Connection Type	37° Flare
Connection 4 Size	na	Connection 2 Thread Size	na
Connection 1 Size	Male 37° Flare	Connection 2 Size	Female 37° Flare Swivel
Body Material	Stainless Steel	Connection 3 Size	na
Connection 3 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 3 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
