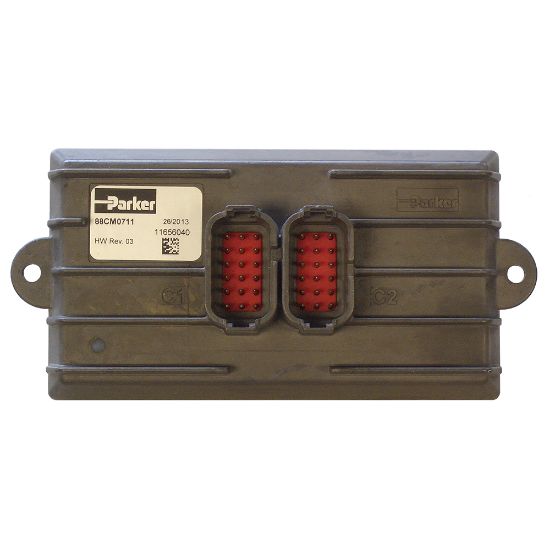

Picture of Parker 88CM0711 - Semi-custom Controller Module - CM0711

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 88CM0711 - Semi-custom Controller Module - CM0711

Parker's CM0711 controller module is a rugged controller that can be used alone or with other controllers in a system. The CM0711 is programmed in C by customers to meet their needs. The CM0711 communicates using J1939 protocol over a CAN bus connection.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 88CM0711
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
IndustrySpecialtyPower Supply Voltage24 V
Maximum Operating Temperature85 °CSpecifications Met2004/108/EC
Communication Interface2x CAN (J1939)Housing MaterialAluminum
Number of Inputs7Controller TypeMaster Controller
Electrical ConnectionDeutsch DT16DivisionElectronic Motion and Controls Division
Output Current Rating5 A (1x)Number of Outputs11
Ingress Protection Rating69KMinimum Operating Temperature-40 °C
SoftwareC and SDKModel NumberCM0711
