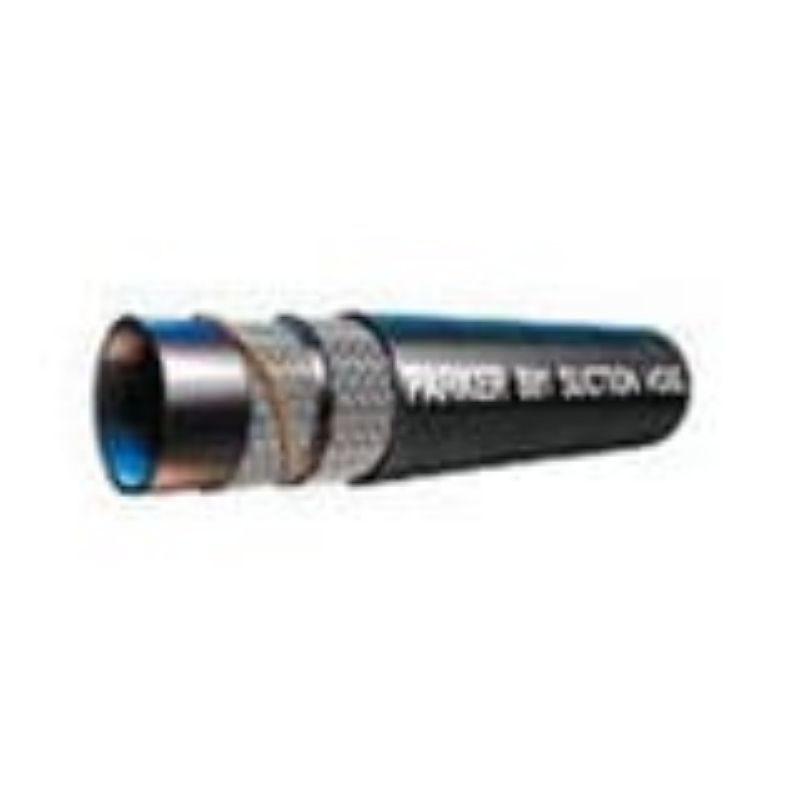

Parker 881-12 - Suction and Return Line Hose 62-300 PSI – 881 Hose

Name: Parker 881-12 - Suction and Return Line Hose 62-300 PSI – 881 Hose
SKU: 881-12
Price: 18.88 USD
Availability: InStock

Parker's 881 hose is a suction and return line hose that has a working pressure range of 62-300 PSI which is designed for high temperature applications.

AFP Availability:

555 In Stock

Jacksonville, FL	65
Richmond, VA	61
Knoxville, TN	59
Summerville, SC	54
Norfolk, VA	53
Johnson City, TN	52 (Pickup only)
Knoxville, TN	50
Richmond, VA	46 (Pickup only)
Ashland, VA	43 (Pickup only)
Mooresville, NC	39
Fayetteville, NC	22
Sumter, SC	8

Partner Available:

3367 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 881-12

$18.88/each

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	257 °F	Compatible Fitting	81 Series
Media	Petroleum Hydraulic Fluids	Hose Inner Tube Material	Synthetic Rubber
Vacuum Pressure Rating	28 Inch-Hg	Inside Diameter	3/4 inch
Outside Diameter	1.2 inch	Division	Hose Products Division
Hose Reinforcement Material	Multiple Braids of Fiber with Wire Helix	Minimum Bend Radius	127 mm
Specifications Met	USCG HF	Weight	0.74 kg/m
Maximum Operating Pressure	2.1 MPa	Design Factor	4:1
Minimum Operating Temperature	-40 °C	Application	Petroleum Base Hydraulic Fluids
Nominal Hose Inside Diameter	19 mm	Cover Material	MSHA Approved
Hose I.D. (size)	-12

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
