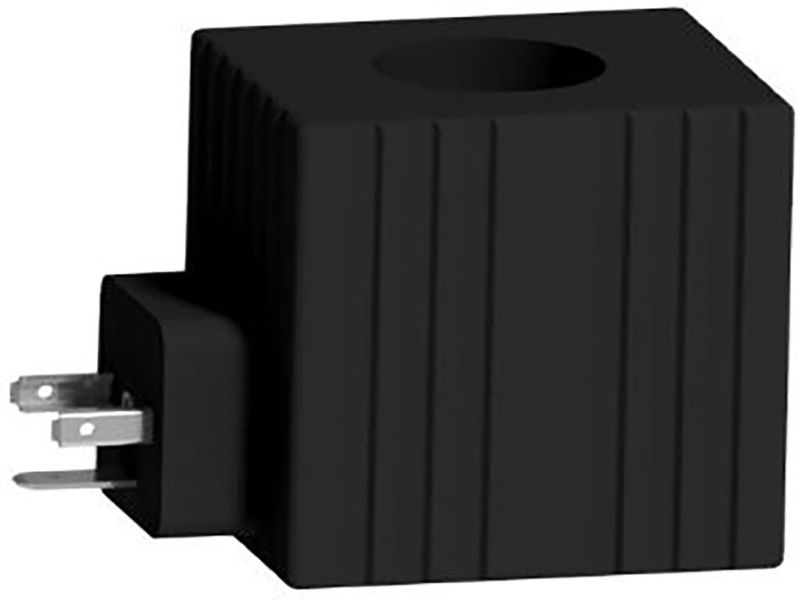

Parker 851058-012VDC - 1" DS Coil

Parker’s 1 inch DS Coil is a high power coil often used with 12, 16, and 20 size proportional or on-off solenoid cartridges. Multiple voltage and termination styles are standard cataloged options.

AFP Availability:	Quote Required
Partner Available:	31 In Stock

Brand Parker

Part No. 851058-012VDC

$270.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Weight	1.27 lb
Maximum Operating Pressure	n/a	Resistance	3.4 Ω
Function	1" DS Coil	Flow Rate	n/a
Current	3.53 A	Actuation Type	n/a
Power Consumption	42 W	Seal Material	n/a
Duty Cycle	Continuous @ 100% Voltage	Maximum Flow Rate	n/a
Minimum Operating Temperature	-40 °C	Division	Hydraulic Systems Division
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
For Fluid Type	n/a	Coil Type	Standard
Maximum Operating Temperature	200 °C	Voltage	12 VDC
Connection Type	Din
