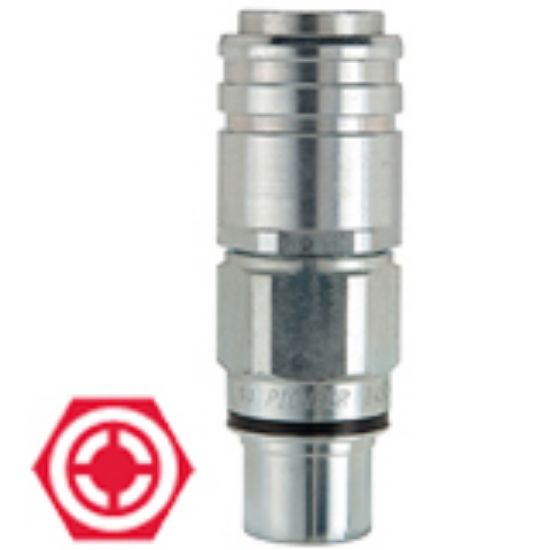

Parker 8450-16 - Rigid Mount, Pioneer Agricultural, Connect Under Pressure Quick Couplers (ISO 5675) - 8450 Series

Pioneer rigid mount, connect under pressure quick couplers are used across a spectrum of agricultural hydraulic applications where fluid lines require fast and easy connection while either or both the coupler and nipple are under pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8450-16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Coupling Half	Coupler	Sleeve Type	Push-pull Connect and Disconnect (Rigid Mount)
Media	Hydraulic	Brand	Pioneer
Specifications Met	ISO 5675	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Body Material	Steel	Flow Rate	25 Gal/min
Seal Material	Nitrile	Minimum Operating Temperature	-40 °F
Division	Quick Coupling Division	Body Size	1/2 inch
Connection Thread Size	7/8"-14 ORB inch	Thread Style	Female

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
