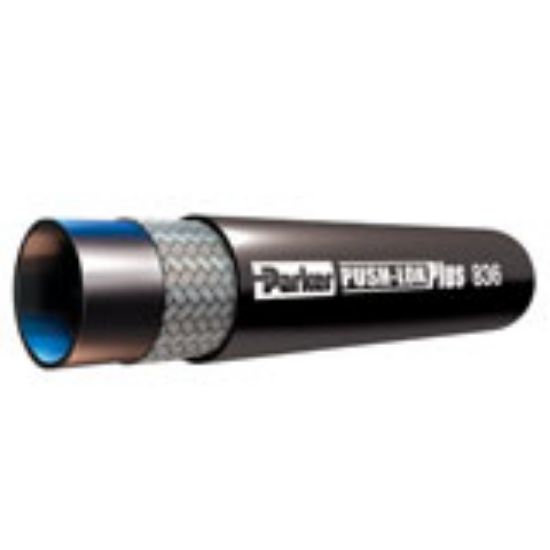

Parker 836-4-RL - Push-Lok Plus High Temperature Multipurpose Hose 300-400 PSI – 836 Hose

Name: Parker 836-4-RL - Push-Lok Plus High Temperature Multipurpose Hose 300-400 PSI – 836 Hose
SKU: 836-4-RL
Price: 7.49 USD
Availability: InStock

Heat-resistant Push-Lok Plus 836 hoses accommodate higher working pressures and higher temperatures than other Push-Lok Plus hoses while offering the same compatibility features.

AFP Availability:

1043 In Stock

Richmond, VA	427
Grovetown, GA	411
Jacksonville, FL	145
Norfolk, VA	51
Knoxville, TN	9

Partner Available:

2840 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 836-4-RL

$7.49/each

Qty:

Products specifications

Attribute name	Attribute value
Design Factor	n/a	Nominal Hose Inside Diameter	6 mm
Cover Material	MSHA Approved	Application	Petroleum Base Hydraulic Fluids
Minimum Operating Temperature	-48 °C (Oil)	Maximum Operating Temperature	302 °F (Oil)
Size	-4	Hose Inner Tube Material	PKR® Rubber
Media	Lubricants	Compatible Fitting	82 Series
Outside Diameter	12.7 mm	Vacuum Pressure Rating	28 Inch-Hg
Inside Diameter	6.3 mm	Division	Hose Products Division
Minimum Bend Radius	65 mm	Specifications Met	n/a
Hose Reinforcement Material	1 Braid of Fiber	Weight	0.13 kg/m
Maximum Operating Pressure	400 psi	Hose I.D. (size)	-4
Color	Blue

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

FCG HPD REACH Annex XIV (PDF)
