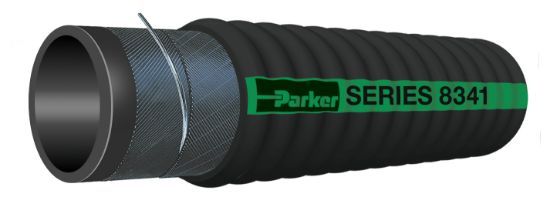

Parker 8341-2000 - DAY-LITE® Corrugated Material Handling Suction & Vacuum Hose, Series 8341

Day-Lite Large Corrugated Material Handling Suction & Vacuum Hose incorporates a thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 180°F and 75 psi, Series 8341

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8341-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Length per Package	100 ft	Outside Diameter	63 mm
Specifications Met	N/A	Cover Structure	Corrugated
Minimum Operating Temperature	-40 °F	Application	Material Handling
Maximum Operating Pressure	75 psi	Maximum Operating Temperature	82 °C
Hose Inner Tube Material	Black	Division	Hose Products Division
Package Type	Coil	Cover Color	Black
Media	Dry Abrasive Powders (Debris)	Weight	1 lb/ft
Minimum Bend Radius	6 inch	Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR)
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Inside Diameter	50.8 mm
Hose I.D. (inch)	2
