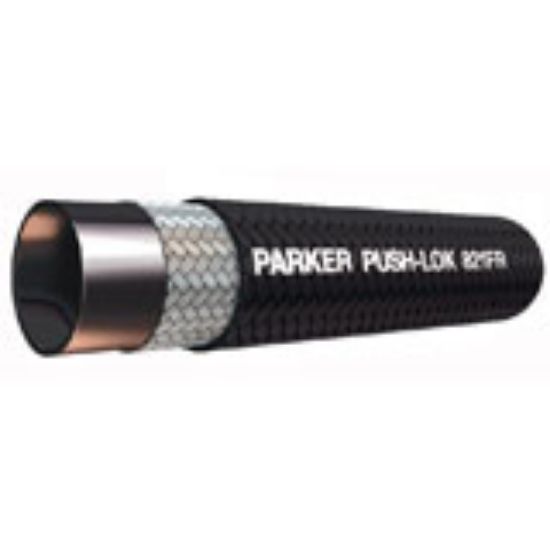

Parker 821FR-6-BLK - Push-Lok Fire Resistant Cover Multipurpose Hose 250-350 PSI – 821FR Hose

Parker's 821FR hose is a fire resistant hose that has a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 821FR-6-BLK

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Nominal Hose Inside Diameter	10 mm	Outside Diameter	15.9 mm
Application	Petroleum Base Hydraulic Fluids	Maximum Operating Temperature	212 °F (Oil)
Design Factor	4:1	Maximum Operating Pressure	300 psi
Weight	0.16 kg/m	Compatible Fitting	82 Series
Division	Hose Products Division	Hose Cover Type	Fiber Braid
Inside Diameter	3/8 inch	Minimum Bend Radius	76 mm
Minimum Operating Temperature	-40 °C (Oil)	Hose Inner Tube Material	PKR® Rubber
Cover Material	Fire Resistant Fiber Braid	Media	Coolants
Vacuum Pressure Rating	28 Inch-Hg	Hose Reinforcement Material	Braid of Fiber Fire Resistant
Specifications Met	N/A	Size	-6
Color	Black	Hose I.D. (size)	-6
