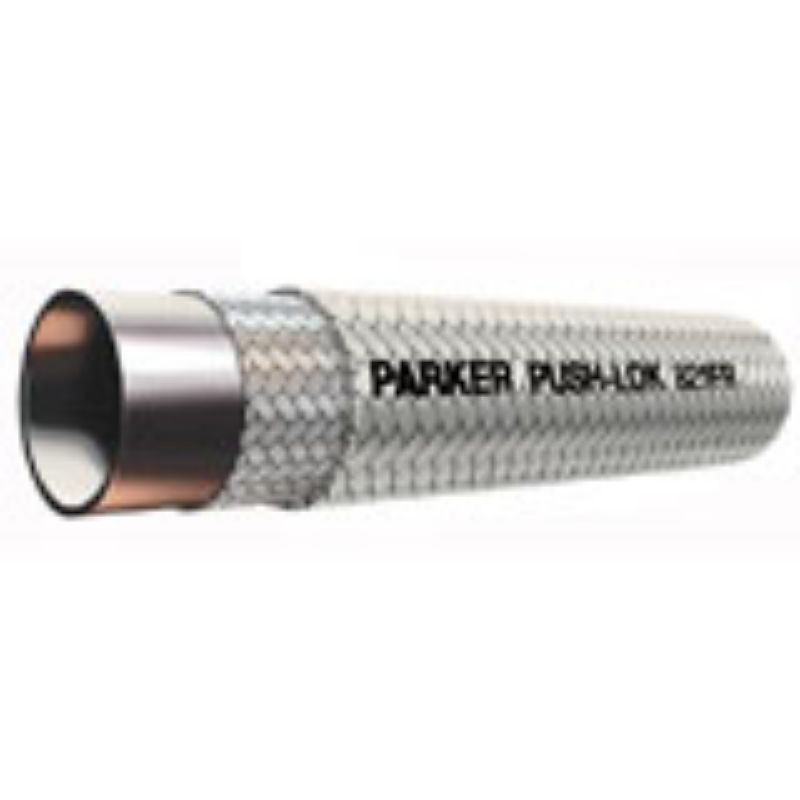

Parker 821FR-12-WHT - Push-Lok Fire Resistant Cover Multipurpose Hose 250-350 PSI – 821FR Hose

Parker's 821FR hose is a fire resistant hose that has a pressure range of 250-350 PSI, and is amongst the Push-Lok multipurpose hose line which features the widest fluid compatibility, application range and size range in the industry.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 821FR-12-WHT

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hose Products Division	Maximum Operating Pressure	250
Design Factor	4:1	Vacuum Pressure Rating	28
Specifications Met	N/A	Weight	0.22
Application	Pneumatics	Size	-12
Inside Diameter	3/4	Outside Diameter	1.030
Minimum Bend Radius	7	Hose Reinforcement Material	1 Braid of Fiber
Hose Inner Tube Material	PKR® Rubber	Nominal Hose Inside Diameter	19
Media	Air (Compressed Air with traces of Oil)	Compatible Fitting	82 Series
Minimum Operating Temperature	-40 °C (Oil)	Maximum Operating Temperature	100 °C (Air)
Cover Material	Fire Resistant Fiber Braid	Hose Cover Type	Fiber Braid
Hose I.D. (size)	-12	Color	White
