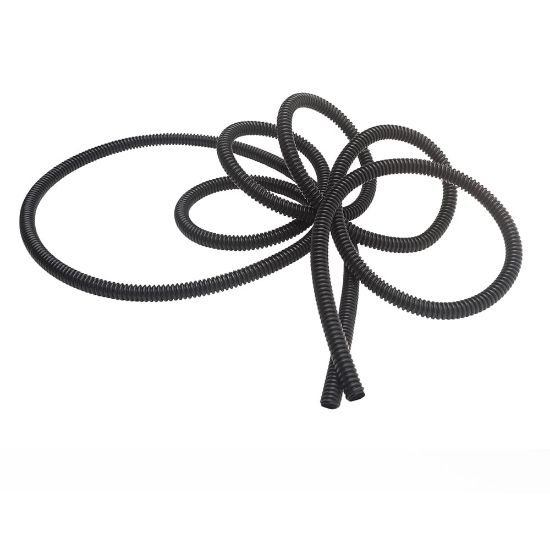

Parker 81914/1-1014-0TC - PTFE Convoluted Tubing

Convoluted tubing is extremely flexible and ideal for applications where a tighter bend radius, increased pressure handling or crush resistance is needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 81914/1-1014-0TC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Air	Division	Parflex Division
Maximum Operating Temperature	500 °F	Minimum Operating Temperature	-100 °F
Color	Black	Tube Material	Polytetrafluoroethylene (PTFE)
Compatible Fitting	TrueSeal™	Minimum Bend Radius	4-1/4 inch
Maximum Operating Pressure	n/a	Weight	0.430079 kg/m
Application	Cable Protection	Specifications Met	AS 81914 (dimensionally compliant only)
Product Style	Convoluted Bulk Coil	Tube Outside Diameter	53.3 mm
Size	1-3/4 inch	Cuff Length	n/a Customization Available
Length per Package	Random Length Coils m	Cuff Inside Diameter	n/a
Tube Inside Diameter	1.69 inch	Minimum Burst Pressure	n/a
Length (inch)	random	Product Type	MIL-SPEC 81914/1-1014
