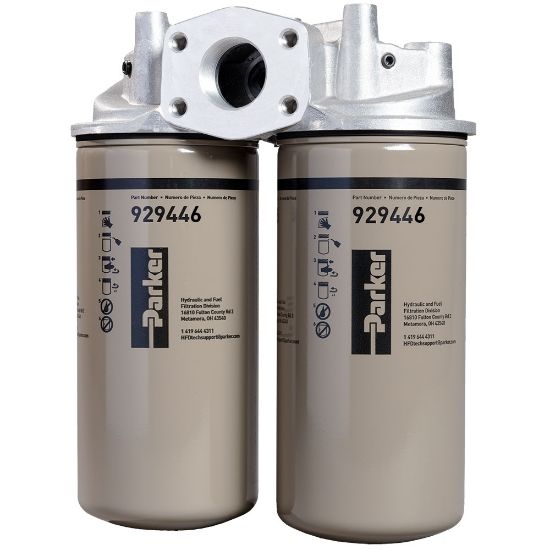

Parker 80AT220BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80AT220BBPGY32H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element Type	20 micron microglass
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Bypass Valve Pressure Rating	25 psid
Mounting Type	Inline	Housing Material	Low Carbon Steel
Compatible Element	929446	Weight	13
Indicator Type	Sold separately	Maximum Operating Temperature	107
Flow Rate	302	For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.
Indicator Pressure Setting	1.4	Pressure Rating	10.3
Indicator Type	Sold separately	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Flow Rate (gpm)	80	Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Bypass Valve (psi)	25 psid bypass	Seal Material	Nitrile
Filter Element	20 micron microglass
