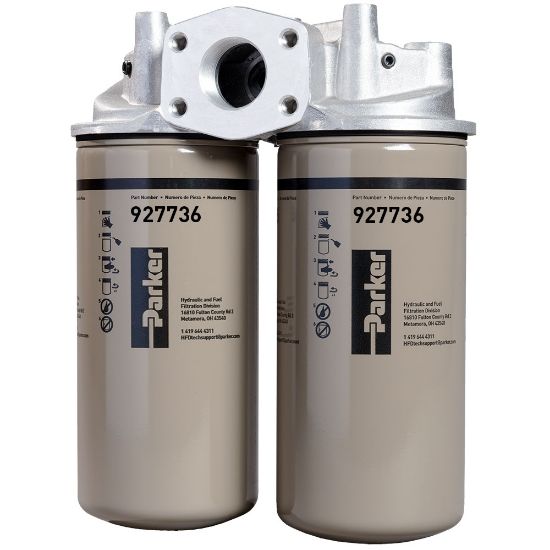

Parker 80AT210CBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80AT210CBPGY32H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Element Type	Canister	Mounting Type	Inline
Indicator Type	Sold separately	Indicator Pressure Setting	1.4
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Compatible Element	927736
Weight	13	Seal Material	Nitrile
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Pressure Rating	150
Maximum Operating Temperature	225	Flow Rate	80
Housing Material	Low Carbon Steel	Bypass Valve Pressure Rating	1.7 bar
Bypass Valve (psi)	25 psid bypass	Seal Material	Nitrile
Filter Element	10 micron cellulose	Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Flow Rate (gpm)	80	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Indicator Type	Sold separately

Product resources

Literature and Reference Materials
