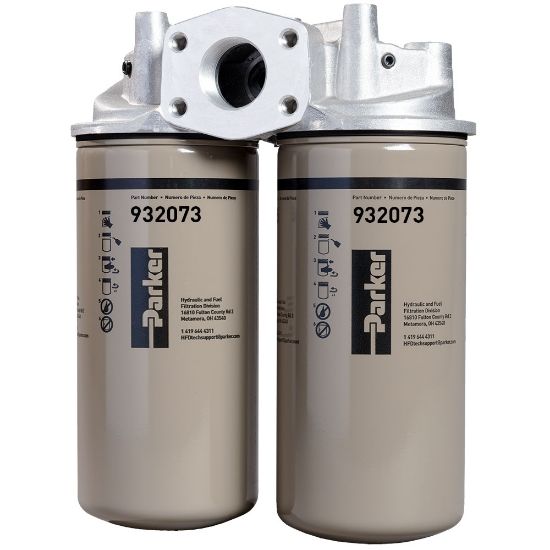

Parker 80AT203BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80AT203BBPGY32H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Indicator Type	Sold separately	Flow Rate	80
Housing Material	Low Carbon Steel	Mounting Type	Inline
Bypass Valve Pressure Rating	1.7 bar	Compatible Element	932073
Maximum Operating Temperature	107	Indicator Pressure Setting	1.4
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Pressure Rating	10.3
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Filter Element Type	3 micron microglass
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Weight	5.89
Flow Rate (gpm)	80	Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports
Seal Material	Nitrile	Bypass Valve (psi)	25 psid bypass
Filter Element	3 micron microglass	Indicator Type	Sold separately
Options	Inlet & Outlet, both sides (all ports drilled & tapped)
