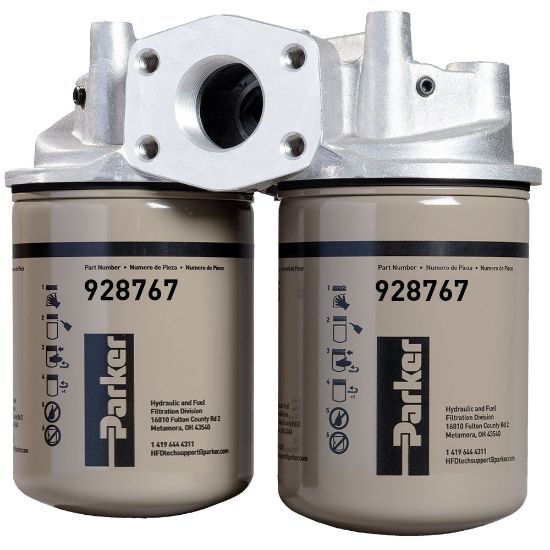

Parker 80AT120BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80AT120BBPGY32H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Flow Rate	272	Pressure Rating	150
Filter Element Type	20 micron microglass	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Seal Material	Nitrile
Weight	11.3	Indicator Type	Sold separately
Housing Material	Low Carbon Steel	Compatible Element	928767
Mounting Type	Inline	Indicator Pressure Setting	20
Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Bypass Valve Pressure Rating	25 psid
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Maximum Operating Temperature	107
Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Indicator Type	Sold separately
Options	Inlet & Outlet, both sides (all ports drilled & tapped)	Flow Rate (gpm)	72
Bypass Valve (psi)	25 psid bypass	Seal Material	Nitrile
Filter Element	20 micron microglass
