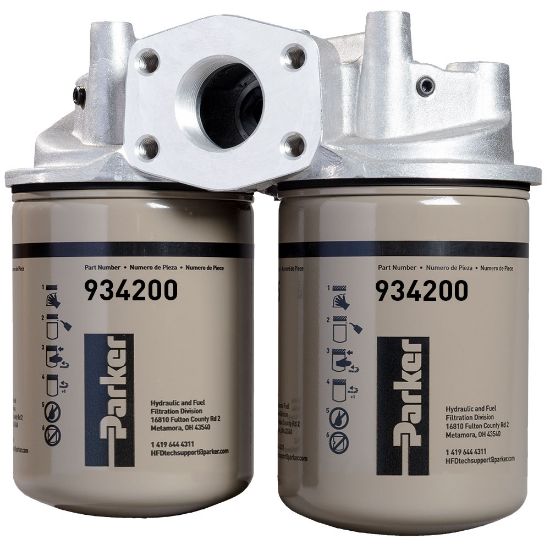

Parker 80AT103BBPGY32H - Low Pressure Spin-On Filters 12AT/50AT Series

Our rebranded Spin-On Low Pressure Filter Series are cost effective yet uncompromising in performance and quality. Max allowable operating pressure of 150 PSI/10.3 Bar and capable of flows up to 50 GPM/190 LPM depending on viscosity.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 80AT103BBPGY32H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	107	Bypass Valve Pressure Rating	25 psid
For Fluid Type	Suitable for use with mineral and vegetable oils, and some synthetic oils. For other fluids, please e-mail Technical Support at [email protected] or call 800-253-1258.	Indicator Pressure Setting	1.4
Seal Material	Nitrile	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Pressure Rating	150	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Port Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Mounting Type	Inline
Indicator Type	Sold separately	Weight	11.3
Compatible Element	934200	Housing Material	Low Carbon Steel
Flow Rate	72	Filter Element Type	Canister
Indicator Type	Sold separately	Options	Inlet & Outlet, both sides (all ports drilled & tapped)
Port Connection Type	2" SAE Code 61 Flange / 1-1/2" NPT ports	Flow Rate (gpm)	72
Filter Element	3 micron microglass	Bypass Valve (psi)	25 psid bypass
Seal Material	Nitrile
