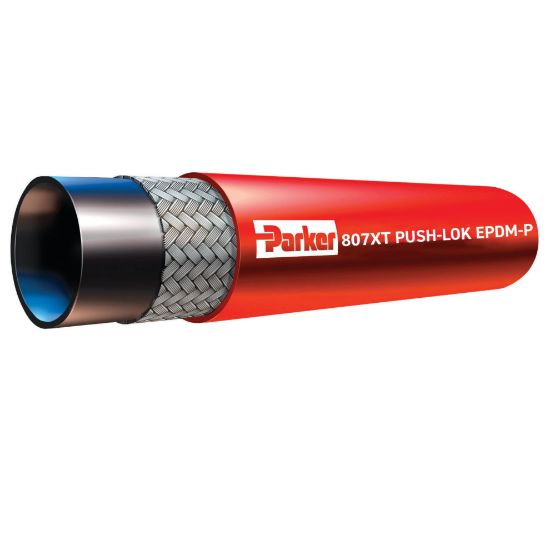

Parker 807XT-6-RED-RL - Push-Lok EPDM-P Hose 100-150 PSI – 807 Hose

Parker's 807 hose has a working pressure of 150 PSI (100 PSI in size 16) and is the newest addition to our Push-Lok hose family. Featuring a peroxide cured EPDM tube, it is ideal for use in thermal management systems.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 807XT-6-RED-RL

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Hose Outside Diameter	0.60	Minimum Operating Temperature	-40
Maximum Operating Temperature	212	Media	air (indlucing dry air), water (including PCW), coolant solutions
Hose Inner Tube Material	Black EPDM peroxide cured	Minimum Bend Radius	40.6
Maximum Operating Pressure	150	Hose Reinforcement Material	One fiber braid
Specifications Met	UL94 V-0 Flame resistance rating Qualified by OCP for BMQC application	Compatible Fitting	82 Series
Cover Material	Red synthetic rubber smooth finish	Weight	0.12
Application	Media Transfer	Division	Hose Products Division
